Traxx Railway Attachments
Grapples & Undercutter Bars
From ballast renewal to rail material handling, Traxx supplies specialized tools for railway construction and maintenance.
Ballast & material handling
Tools for demanding railway work.
Explore our undercutter bars and grapples, with equipment details and specifications below.
01 / 12-foot bar / BTI-3012
BTI Undercutter Bar
Hydraulic ballast removal for track maintenance, drainage improvement and ballast renewal.
- Hydraulic cutting system for excavation beneath the track
- Durable frame and components for railway work
- Carrier setup matched to the excavator and maintenance task
| Bar length | 12 ft |
|---|---|
| Model | BTI-3012 |
| Weight | 4,552 lbs |
02 / 12-foot bar / BTE-301282
BTE Undercutter Bar
A toothed, hydraulically powered cutting bar for removing fouled and compacted ballast beneath railway tracks.
- Prepares the track bed for fresh ballast
- Supports drainage improvement and track renewal
- Designed for excavators and specialized rail maintenance equipment
| Bar length | 12 ft |
|---|---|
| Model | BTE-301282 |
| Weight | 6,500 lbs |
03 / Rail material handling
Hultdins SureGrip Rail Grapple
Hydraulic gripping and controlled placement of rails, ties and heavy railway materials.
- Railway construction and maintenance
- Loading and unloading track components
- Reinforced construction for demanding material-handling work
| Maximum opening | 1,768 mm / 69.6 in |
|---|---|
| Weight | 398 kg / 877 lbs |
| Permissible continuous load | 5,000 kg / 11,023 lbs |
04 / Sorting & material handling

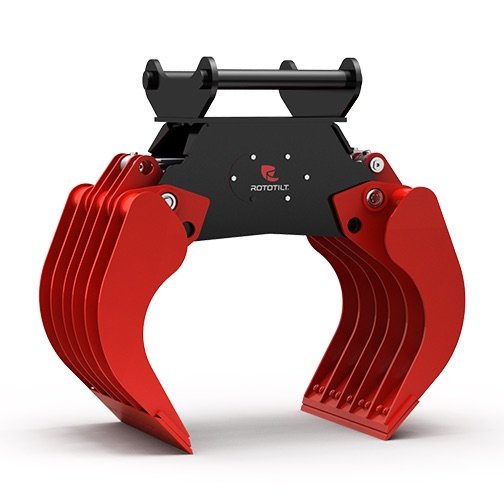

Rototilt SOG 80 Sorting Grapple
A versatile grapple for sorting, demolition, scrap handling and lifting stone or logs.
- Up to 75 kN clamping force
- Expander pins for wear adjustment
- Load-holding valves and tempered boron steel cutters
| Maximum grip width | 2,600 mm / 102.4 in |
|---|---|
| Minimum diameter | 620 mm / 24.6 in |
| Grapple area | 0.42 m² / 4.52 ft² |
| Weight | 795 kg / 1,753 lbs |
| Maximum load capacity | 12,000 kg / 26,460 lbs |
Plan the setup
The right tool. The right machine.
Tell us about the task, site access and carrier requirements. Traxx can help match the attachment, excavator and hydraulic setup to your project.
Explore excavatorsAttachment selection
Built around the work.
Confirm attachment availability, machine compatibility and operating limits with our team when planning the job.
Traxx Railway Services
Put the right tool to work.
Contact our team to discuss attachment requirements and availability.
